Setup Guide

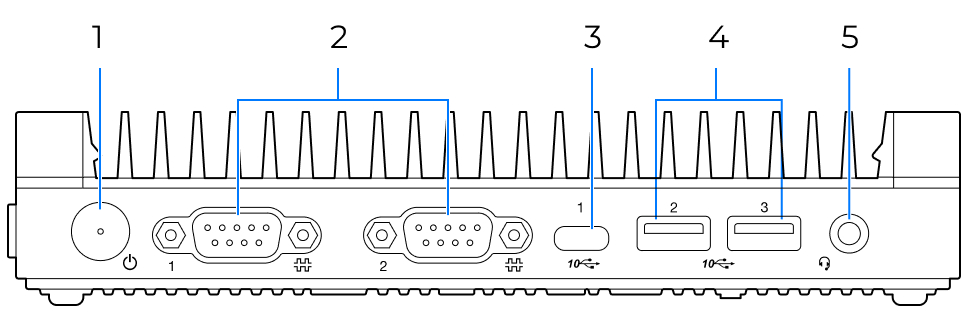

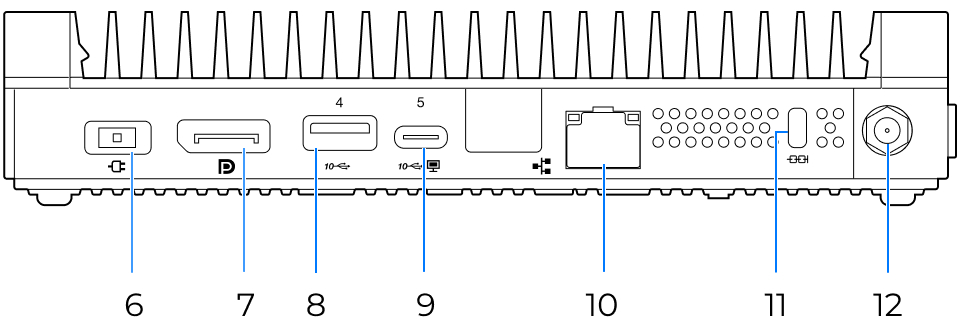

Overview

  1. Power Button

  1. DisplayPort® 1.2 Output Interface

  1. Serial Interface（2 pieces）

  1. USB 3.2 Interface Gen 2

  1. USB-C™（3.2 Gen 2）Interface

  1. USB-C™（3.2 Gen 2）Interface

  1. USB 3.2 Interface Gen 2（2 pieces）

  1. Ethernet Interface

  1. Headset Interface

  1. Security Lock Slot

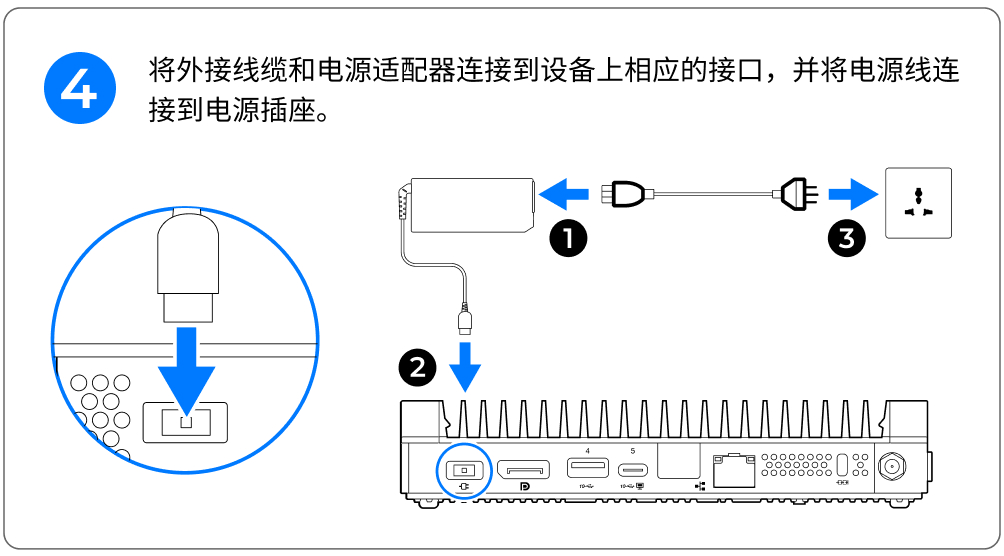

  1. Power Adapter Interface

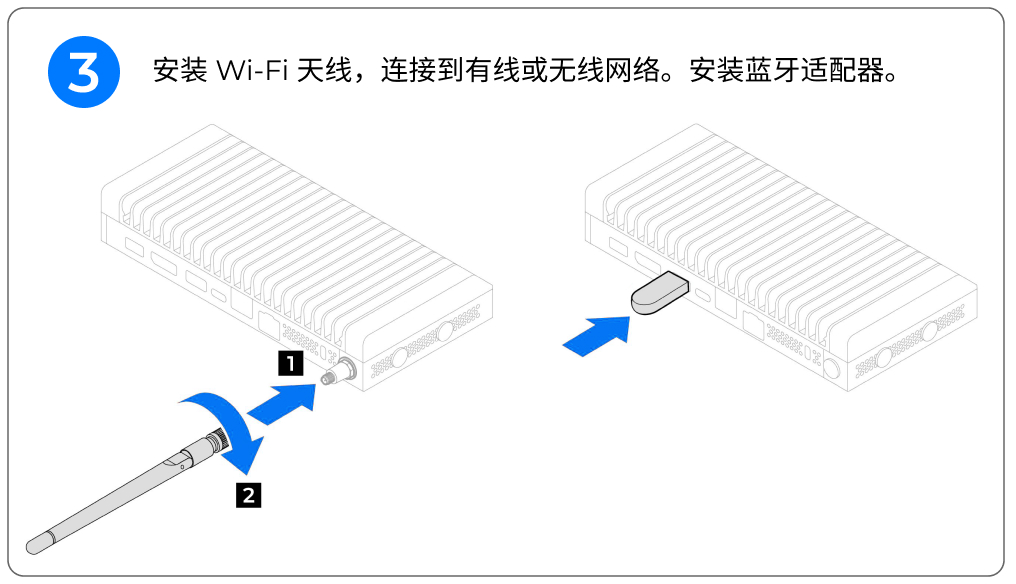

  1. Wi-Fi® Antenna Slot

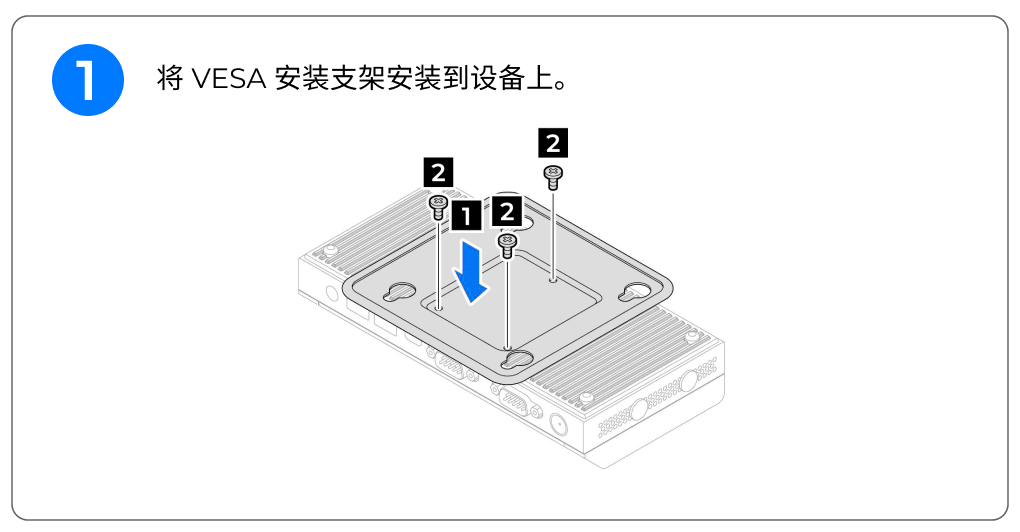

Installation

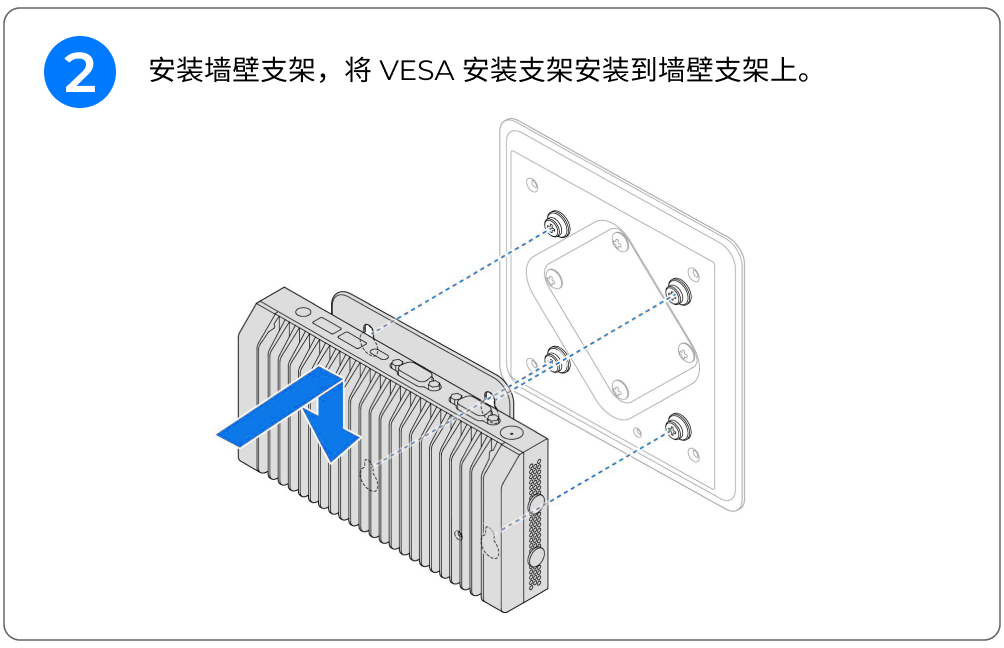

Please secure the VESA mount bracket to the wall mount bracket using the fixed screws.
